The Radeon X800 XL sits in a nice spot for retro PC building: fast and PCI Express, but old enough to still have official Windows 98 Catalyst drivers. Cards that manage both of those at once are rarer than you’d think.
What it is

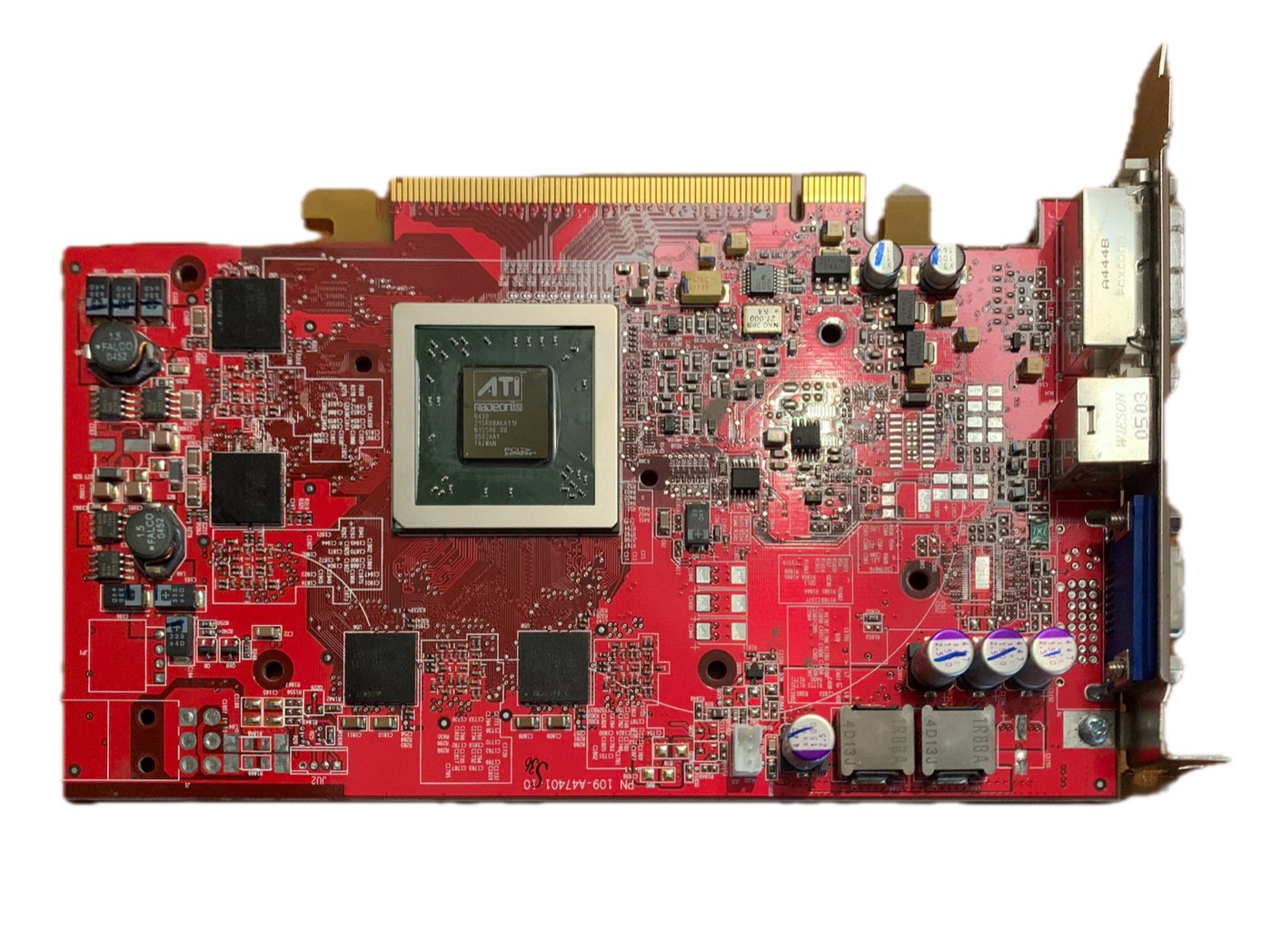

The X800 XL is a 2005 PCI Express card built on ATi’s R430 GPU — 16 pixel pipelines on a 256-bit memory bus, paired with 256MB of GDDR3. It’s fast enough for real late-DirectX 9 gaming while landing just inside the window where ATi still shipped genuine Windows 98 drivers.
Specifications
- Released: 2005
- GPU: R430
- Pixel pipelines: 16
- Memory: 256MB GDDR3, 256-bit bus
- Core / memory clock: 400MHz / 500MHz
Why I like it
- one of the fastest cards with official-era Windows 98 Catalyst support
- also a genuinely capable Windows XP card, so it doesn’t need swapping out between OSes
- common PCIe form factor, so it drops into later OEM and Core 2-era machines without hunting for AGP
- lets one PC cover late-90s through mid-2000s gaming without changing GPUs
My card
Mine went into the Dell OptiPlex 380 build — the retro rocket — where it turned a fairly ordinary office PC into something that handles DOS, Windows 98, and Windows XP gaming well. See The Ugly Dell That Became My Dream Retro Gaming PC for the full build.
It arrived cheap for a reason: the fan was seized and grinding badly. Sorting that out took three attempts, ending with an aftermarket cooler.
Pros
- fast, official-era Windows 98 support — a genuine rarity for a PCIe card
- comfortably capable under Windows XP too
- common and generally affordable
Cons
- surviving cards are old enough that fan/cooler wear is close to guaranteed
- 256MB and a 2005-era GPU still cap how far it stretches into later DX9 titles
