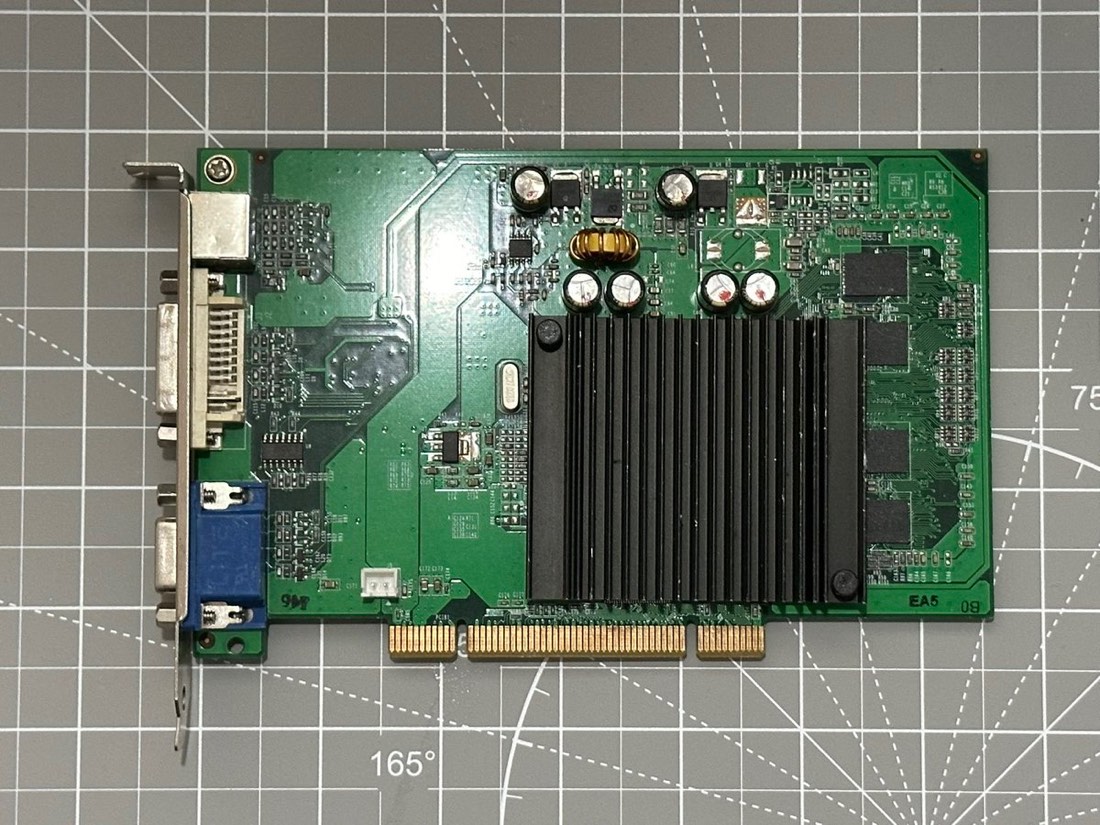

The GeForce 6200 is a budget card from 2004. I bought the PCI version — one of the relatively rare non-AGP variants — specifically as a passively cooled GPU for a Windows 98 retro gaming PC. On paper it looks like a big step up from the usual period options. In practice it was a bad buy.
The Windows 98 problem
Under Windows 98 SE, every game stutters constantly. Direct3D performance is also far lower than the spec sheet suggests — barely ahead of a 3Dfx Voodoo3 2000, which is a 16 MB, 143 MHz card from 1999. The 6200 is a 256 MB, 300 MHz card from 2004. It should not be close.
My first suspicion was the PCI bus holding back a chip designed for AGP. But running the same card in Windows XP roughly doubles the frame rate in some scenes, so the bottleneck is not the bus — it is the driver.

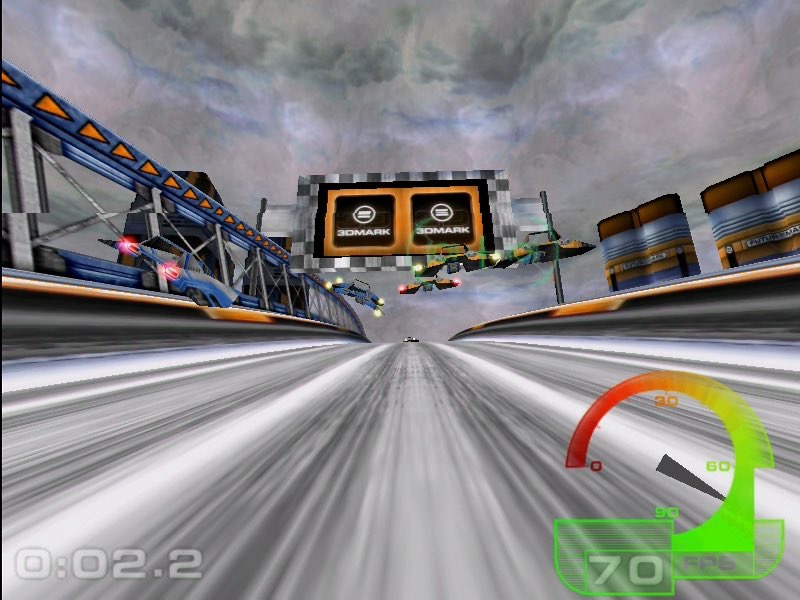

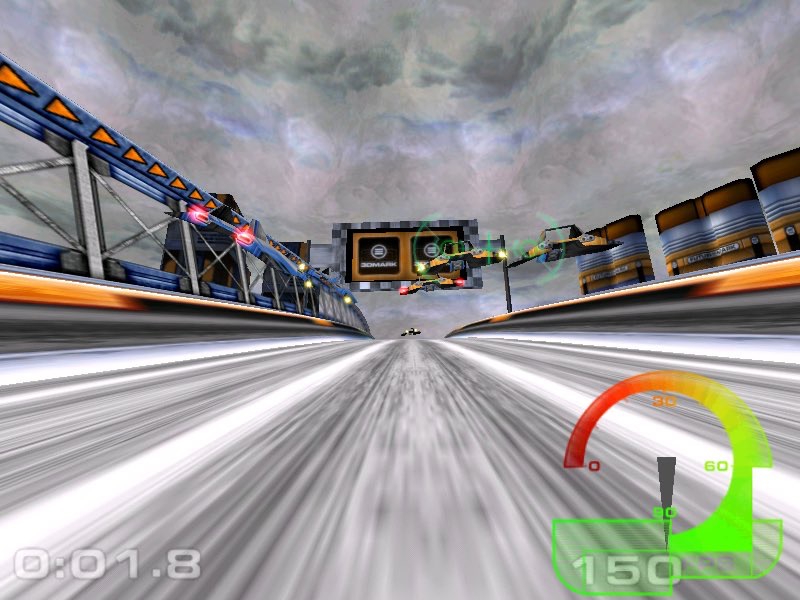

Same card, same benchmark scene: roughly 70 fps on Windows 98 versus roughly 150 fps on Windows XP.
Drivers I tried
- Windows 98 SE: 81.98 (December 2005) from Phil’s Computer Lab — the source of the stutter and the weak performance.
- Windows XP: 93.71 Forceware (October 2006) and the 307.83 GeForce driver (February 2013) from Nvidia. Both are dramatically better than the Windows 9x driver.
The PCI voltage catch
One more quirk from testing the card in a PCI backplane: although the edge connector is keyed for both 3.3 V and 5 V PCI, it will not work in a 3.3 V-only slot. The card fails to initialise and the machine will not POST. You need an ATX power supply that provides 5 V on the PCI slot.
Verdict
Don’t buy a GeForce 6200 — or, most likely, any GeForce 6-series card — for a Windows 98 build. For Windows XP it is a fair low-end passive option.
